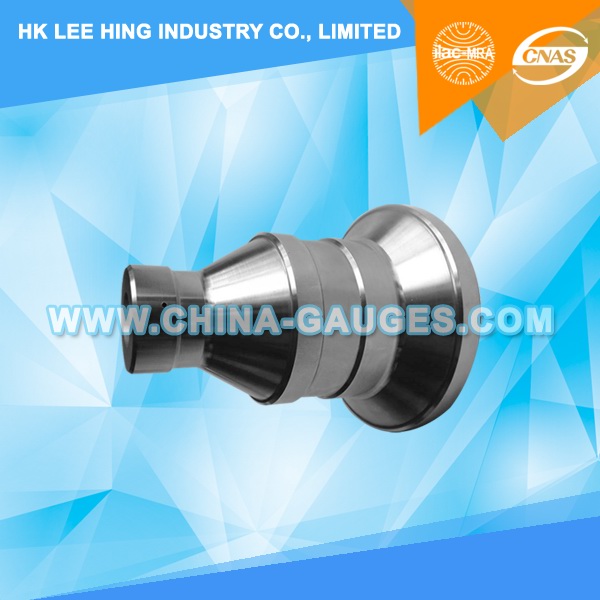

7006-52-1 Gauge for Finished Lamps Fitted with E40 Caps for Testing Contact Making

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-52-1

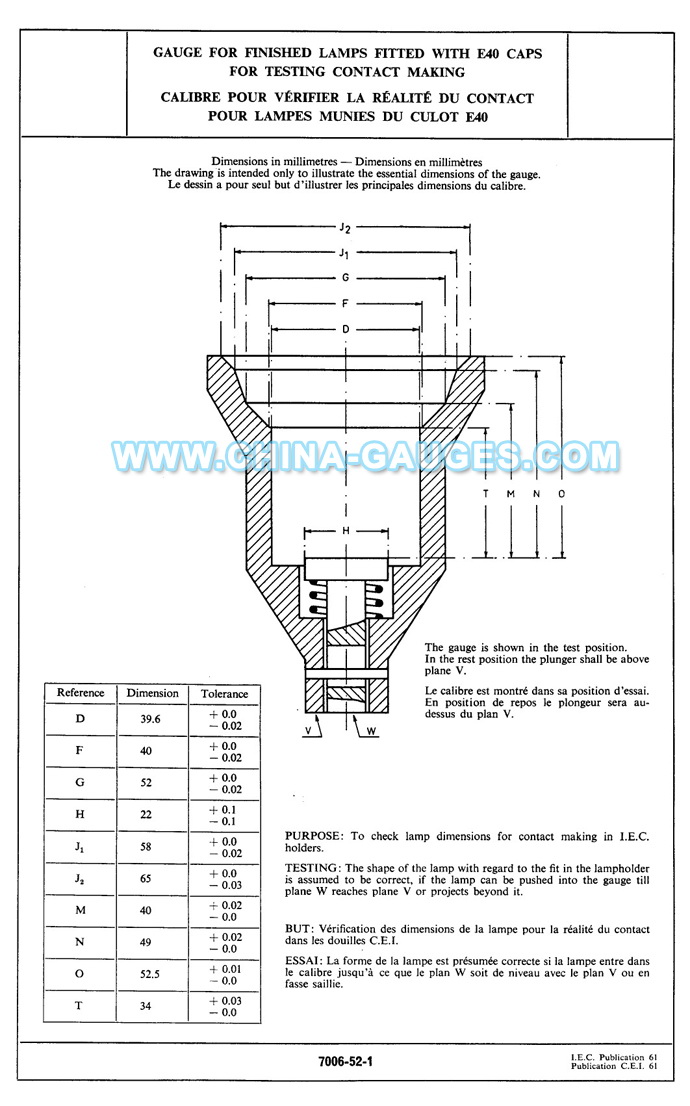

IEC60061-3: 7006-52-1 Gauge for Finished Lamps Fitted with E40 Caps for Testing Contact Making

The gauge is shown in the test position.

In the rest position the plunger shall be above plane V.

Purpose:
To check lamp dimensions for contact making in I.E.C holders.

Testing:
The shape of the lamp with regard to the fit in the lampholder is assumed to be conrrect, if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.
