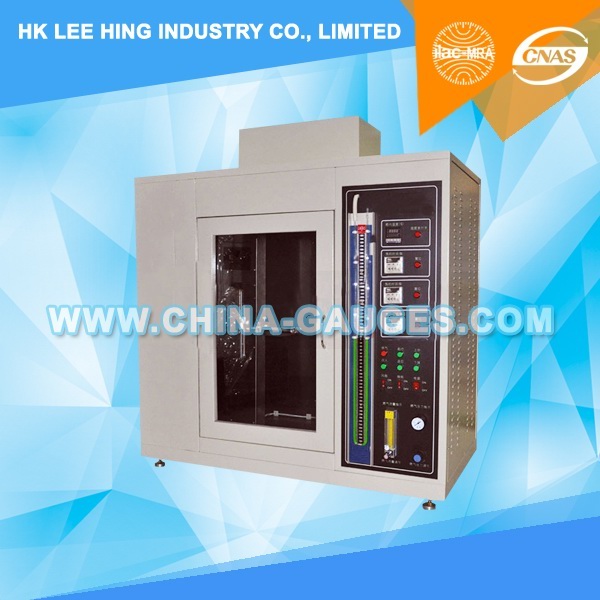

Horizontal and Vertical Flammability Tester

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-HV19


Product introduction:

Horizontal and Vertical Flammability Tester is suitable for  measuring and evaluating the combustion characteristics of plastic materials. It is designed and made based on the America UL94 standard the combustion characteristics’ testing of plastic materials used for device and equipment parts. It tests the horizontal  and straight combustion characteristics of plastic parts used for device and equipment, and equipped with gas flow meter to adjust size of flame. It use motor driving mode to make the operation easy andsafe.


Specification:

Cabinet capacity

≥0.5 cubic meters, with glass watch door

Ignite time

0~99  minutes and 99 seconds can be set

After flame time

0~99  minutes and 99 seconds can be set

Residual burn time

0~99  minutes and 99 seconds can be set

Timer

0~99 minutes and 99 seconds can be adjusted, burning time can be set, and

burning duration can be recorded.

Burning angle

20°,45°,90°(equal to 0°) can be adjusted

Burner size parameter

Nozzle diameter Ø9.5±0.3mm, nozzle effective length is 100±10mm, with air adjust

hole.

Flame height

It can be adjusted from 20mm to 175mm according to the standard requirement.

Product feature

It is equipped with lighting device, air extracting device, gas flow regulating valve,

product feature gas gauge, gas pressure regulating valve, gas flow meter, form U

gas manometer and sample jig

Power

AC 220V, 50 Hz
