Spring Hammer with Energy Impact of 0.5J

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-IK04

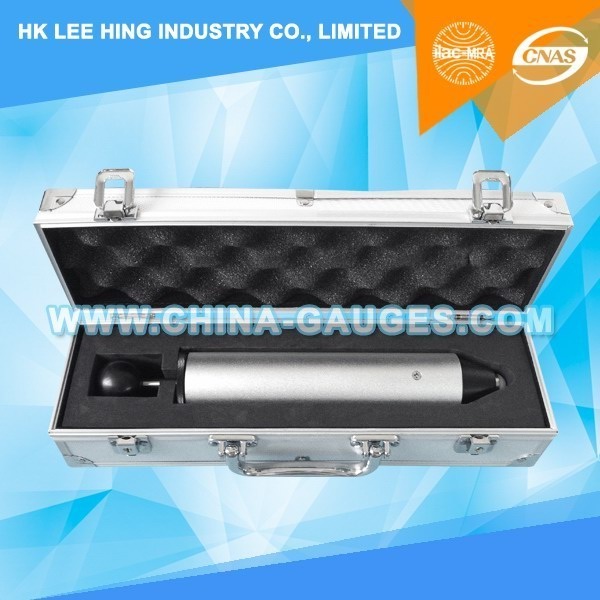

IEC60068-2-75 0.5J Spring Impact Hammer

Introduction:

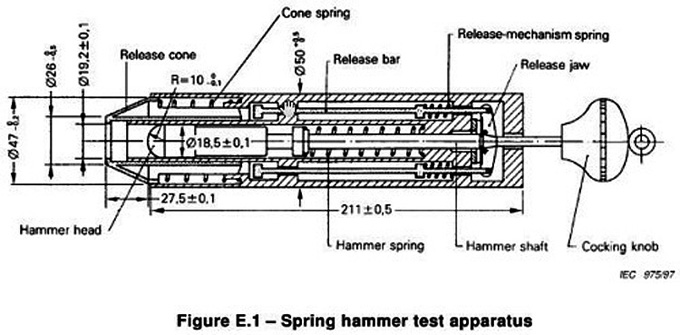

The spring Hammer consists of three principal parts: the body, the striking element and the release system.

It's used to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance with IEC/EN, UL/CSA and other international standards.

Application:

Impact hammers are used to check the durability of enclosures for electrical appliances and household of other electronic products such as shell, lever, handle, knobs, lights and others. If damage occurs from the Impact Hammer test, accessibility probes can be used to measure the extent or severity of the damage. The Impact Hammer simulated the mechanical impact to which electrical equipment may be subjected.

Technical Parameters:

Length	211mm
Weight	1250g
OD	50mm
Hammer Weight	60g
Hammer radius	10mm
The release force of impact	<10N

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.

We would appreciate your comments on the layout design, presentation or other aspects of our website.

Website: http://www.test-item.com
