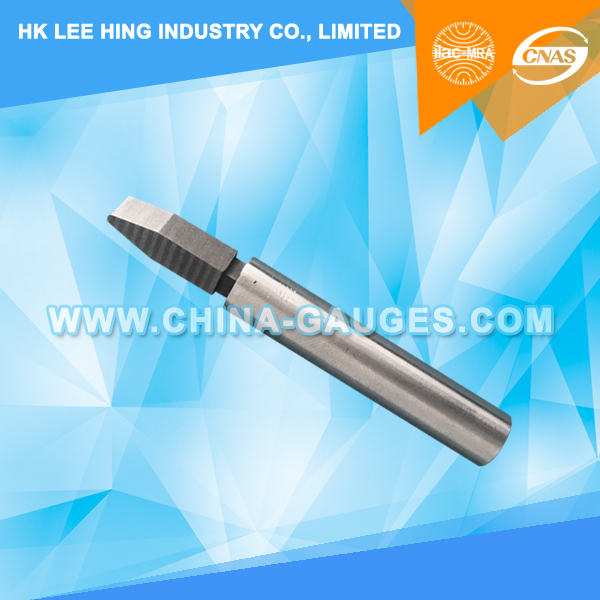

Detail of scratching tool tip of IEC60335-2-24

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-P03

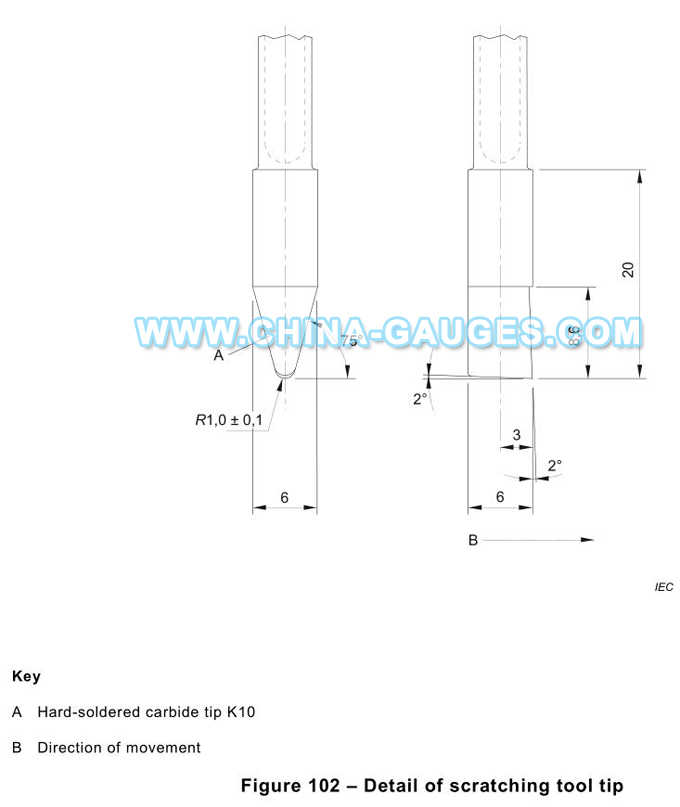

The scratching tool tip is for home appliances whose accessible element surface of all protected cooling system, including the c accessible element surface that have close contact with a protected cooling system to do the scratch test. For example, the scratch resistant test of refrigerator door. It conforms to the IEC60335-2-24 Figure 102.

Such standards require the checking of accessibility to dangerous parts of home electronics and appliances,toys,tools and a hose of other products that are intended to be protected by enclosures.

Key

A Hard-soldered carbide tip K10

B Direction of movement
