UL1278 Fig.10.1 SM206 Cone Probe

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-SM206

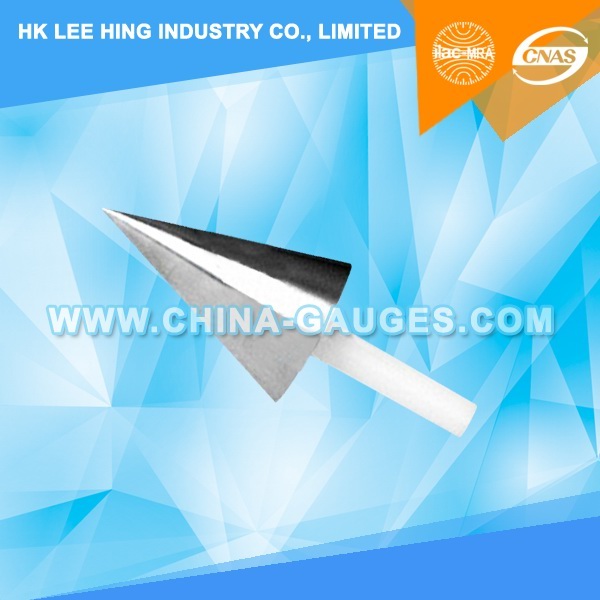

This probe conforms to the standard requirement of UL1278 Fig 10.1. The handle is made of nylon while the probe is made of stainless steel.

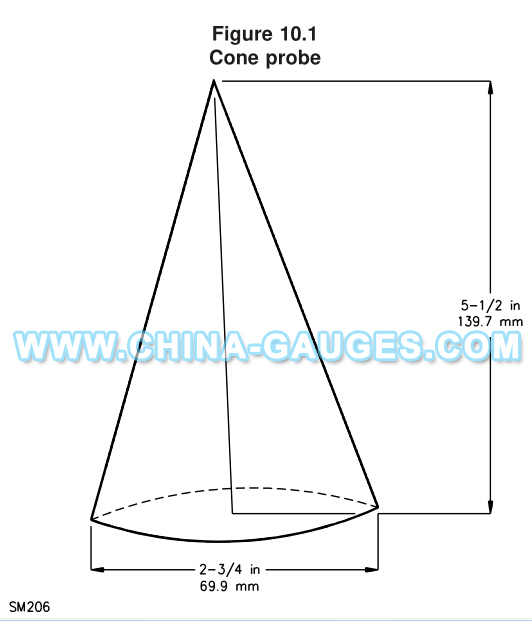

The shape and size of an opening are such that a test gauge in the form of a right-circular cone having a base diameter of 2-3/4 inches (69.9 mm) and an altitude of 5-1/2 inches (139.7 mm), see Figure 10.1, is prevented from touching the heating element and the other high temperature parts when the cone probe is inserted.

Parameter :

Diameter	69.9mm
High	139.7mm
Standard	UL1278 Fig 10.1
