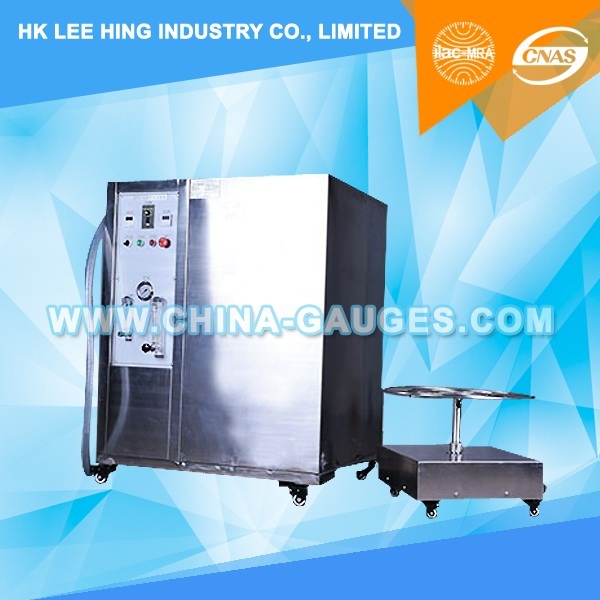

IPX5 and IPX6 Rain Spray Test Apparatus

Test standard:

Outdoor waterproof testing equipment is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX5/6.

Application:

IPX5 and IPX6 Rain Spray Test Apparatus simulates the water drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.

Features:

1. Split type structure, safe and reliable, equipment rack and sample turntable all by the high quality aluminum alloy item No. and SUS304# stainless steel plate, ensures a long time use does not rust.

2. Turntable electrical part fully sealed to prevent water leakage, turntable use speed motor, speed in the standard range can be adjusted, and can control the forward and reverse rotation (suitable for the sample with the electric test).

3. Comes with a water tank, the water tank installed with the water level float valve automatically control the water, and there is a low level alarm detection, effectively prevent the water pump dry and turn damaged.

4. Electrical components used in all such as LG, Omron and other imported brands, wiring craft accord with the requirements of the national standard, panel layout is reasonable, firm connection and marked clearly.

5. Test time can be set 0-999M adjustable, the sample power with power time control function, IPX5 and IPX6 test a key conversion, a key to start, automatic stop, simple intelligence.

6. Spray nozzle: according to the relevant standard requirements of IEC60529

Technical parameters:
