IEC60061-3 E14 Go No Go Thread Gauge

Photos

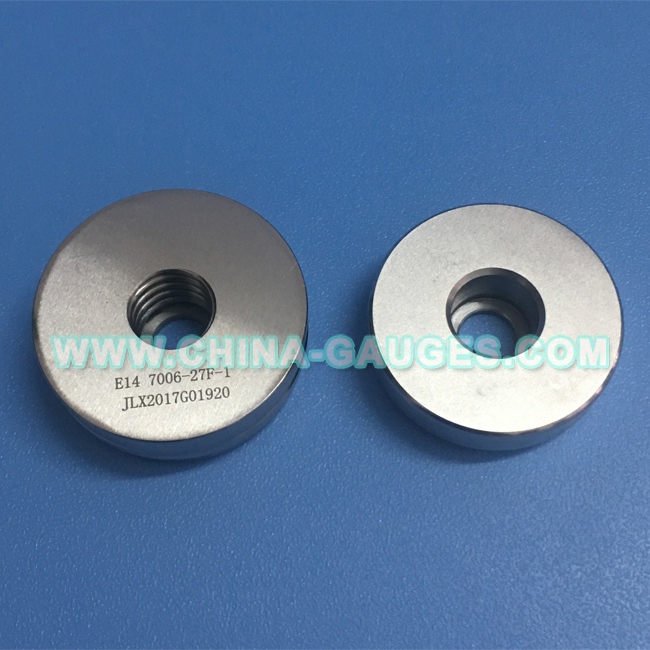

E14 Go Not Go Gauge of Finished Lamp Caps Include:

1) IEC60061-3 7006-27F-1 Go Gauge for E14 Caps on Finished Lamps;

Purpose:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.

Testing:
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X.

2) IEC60061-3 7006-28B-1 Not Go Gauge for E14 Caps on Finished Lamps;

Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension d, of caps E14 on finished lamps.

Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.
Only the weight of the gauge itself shall be used in the test.
