Hand Held Device to Verify Protection Against Spraying Water (spray nozzle)

Photos

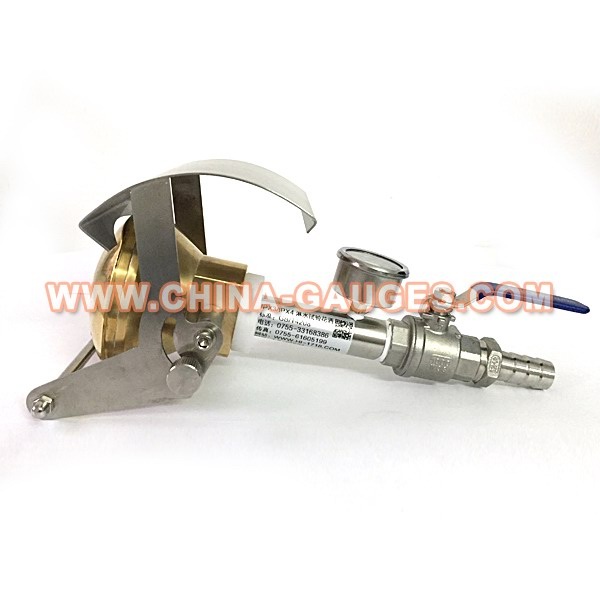

Hand-held device to verify protection against spraying and splashing water; second characteristic numerals 3 and 4 (spray nozzle)

1. Introduction:

The Spray Nozzle of IPX 3/4 is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate. The pressure can be seen on the gauge which is convenient positioned by the Spray Tester IPX 3/4.The spray pattern of the nozzle is made to the specifications of IE60529. The removable shield feature make it easy to test without the interference of the shield .

2. Applications:

Spray Tester IPX 3/4 is designed to perform tests in large and small scale products. It is a great option when a portable tester is necessary. The Spray Tester IPX 3/4 is an alternative to the Oscillating Tube for establishing the degree of protection against ingress water.
The Spray Tester IPX 3/4is intended for use on specimens that will not fit within the diameter of the Tube Tester. The primary IEC tests include IPX3 and IPX4 protection against water spraying and splashing water.

3. Technical Parameter:

Pressure Gauge	0 - 0.25 Mbar
Number of Holes	121
Diameter of Nozzle Holes	0.5
Material	Spray nozzle make of brass
Reference	IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1
