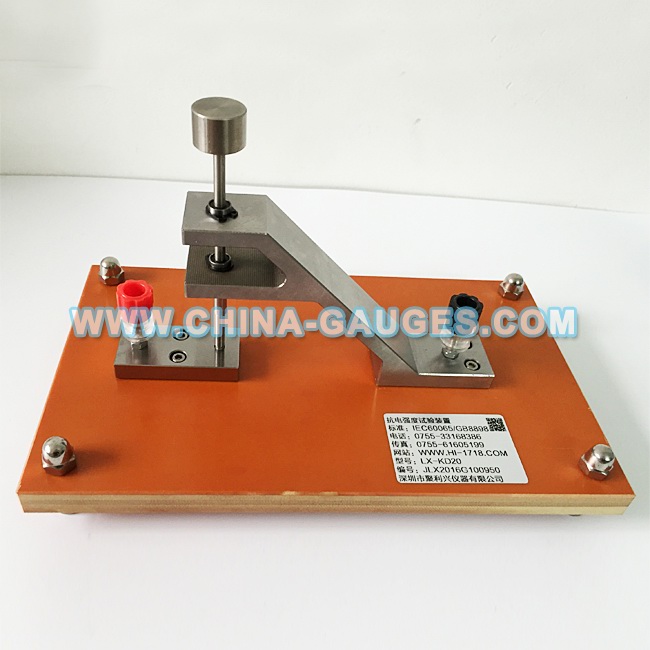

Dielectric Strength Test Equipment is mainly used for testing thin-layer insulation material electric strength. The standing part used the whole strcture is processed by 304 plate material.
Specification: Standard: IEC60065 figure 6, UL1310.
Technical Parameter:
Main Parameter
Technical Index
Metal Pole Diameter
5±0.1mm / 6.35±0.1mm
Metal Club Weight
100±2g / 50±2g
Max. Measure Range
20mm
Max. Strength
<12KV (altitude below 2000m)
Creepage Distances
>35mm
Standard
IEC60065, UL1310
Application:
It is mainly used for thin-layer insulation material electric strength. Fixture have two sizes: Ø5mm 100g and Ø6.8mm 50g. For different test samples should be take different metal bar and test bar. This equipment is equipped with two kinds of different quality of metal bar, 100 grams, 50 grams of each one.
Features:
To improve the insulation board and creepage dielectric properties,surface brushed polished the minimum bracket the minimum distance from the edge of > 35mm,the altitude of 2000 meters designed to meet the strength test requirements of 12 KV.
Note: It needs to be used together with Hipot Tester.
